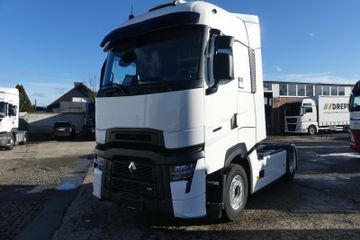

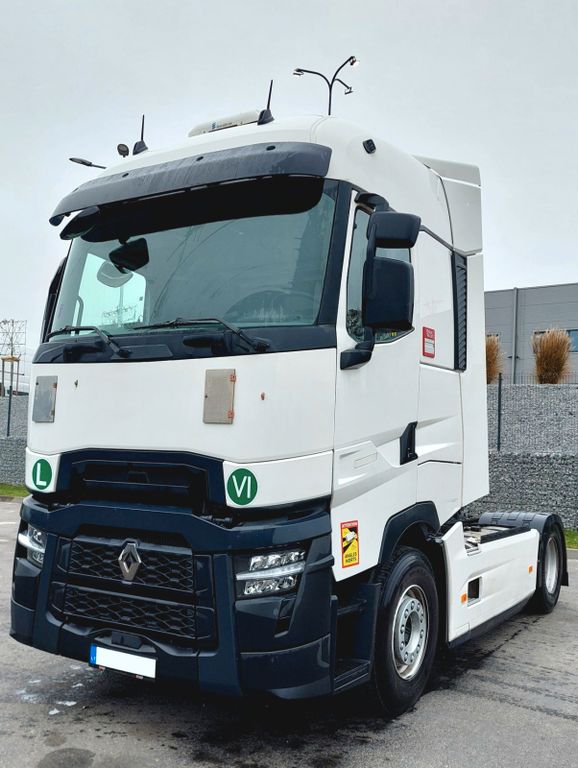

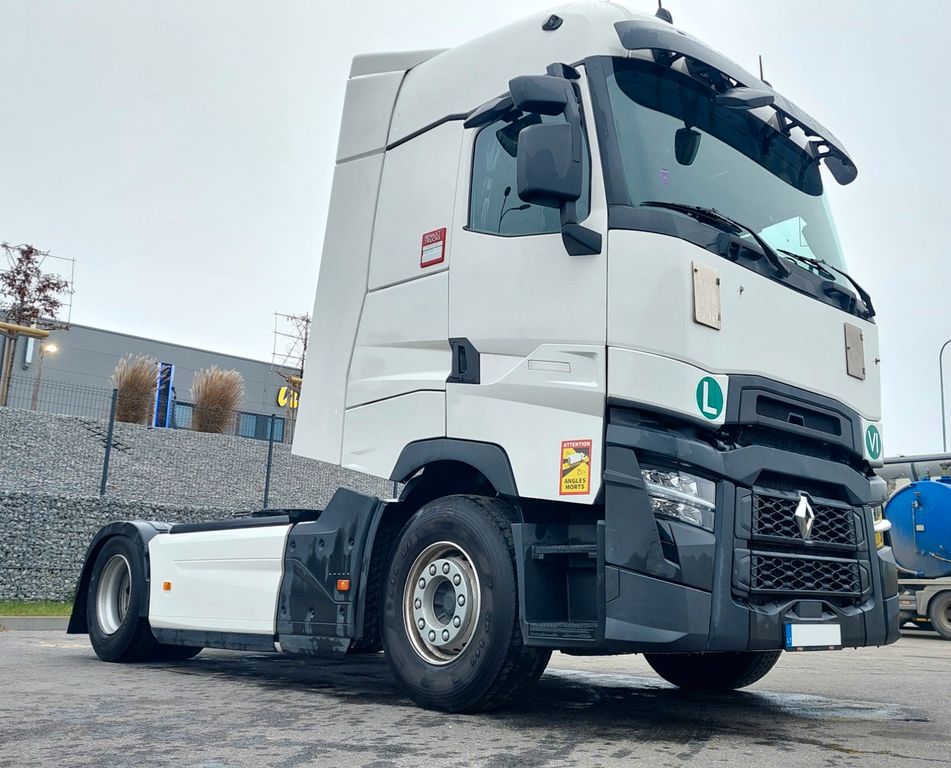

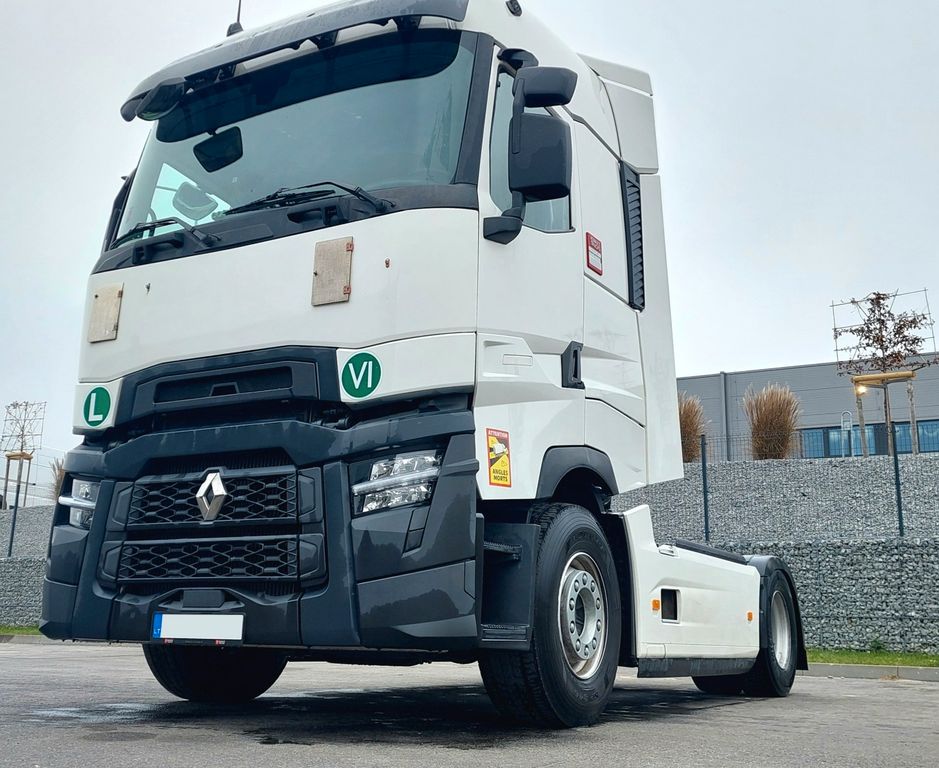

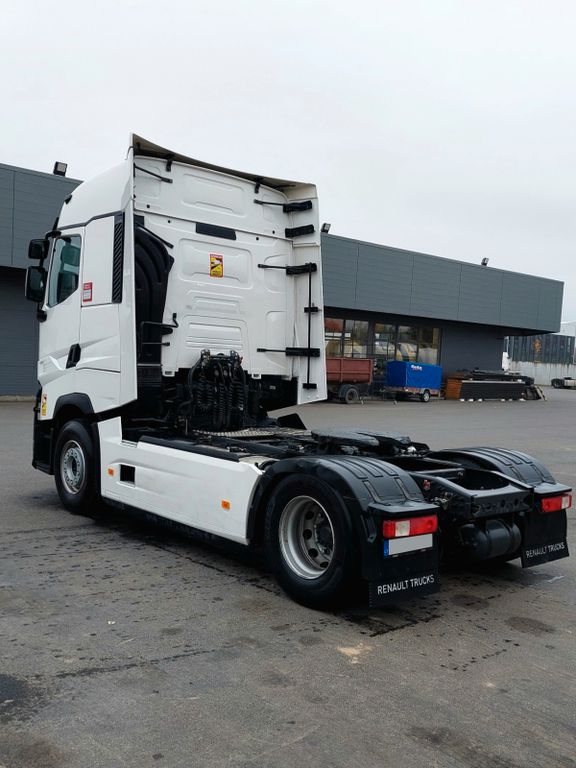

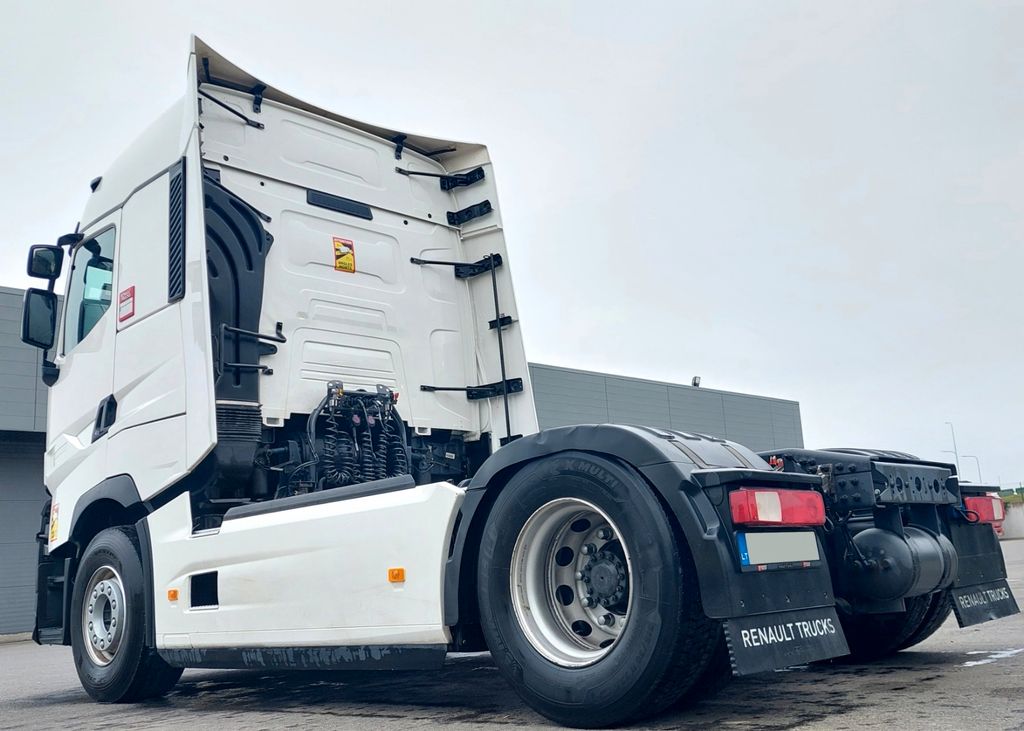

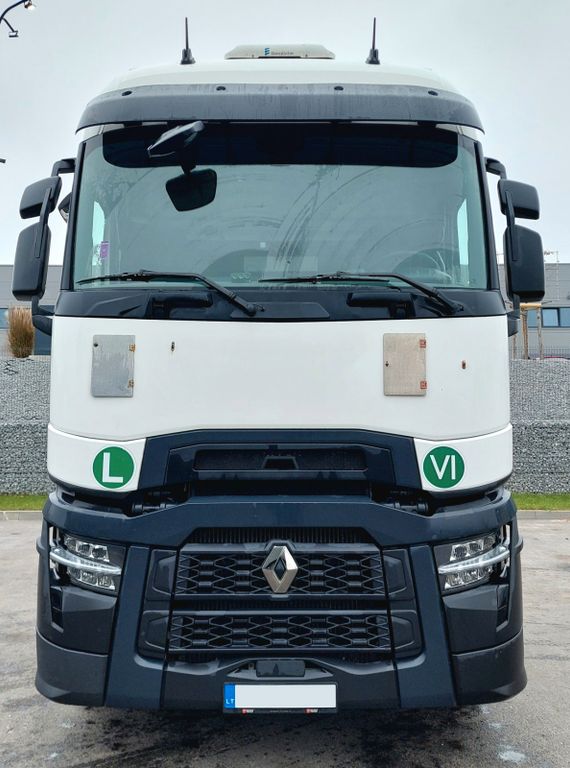

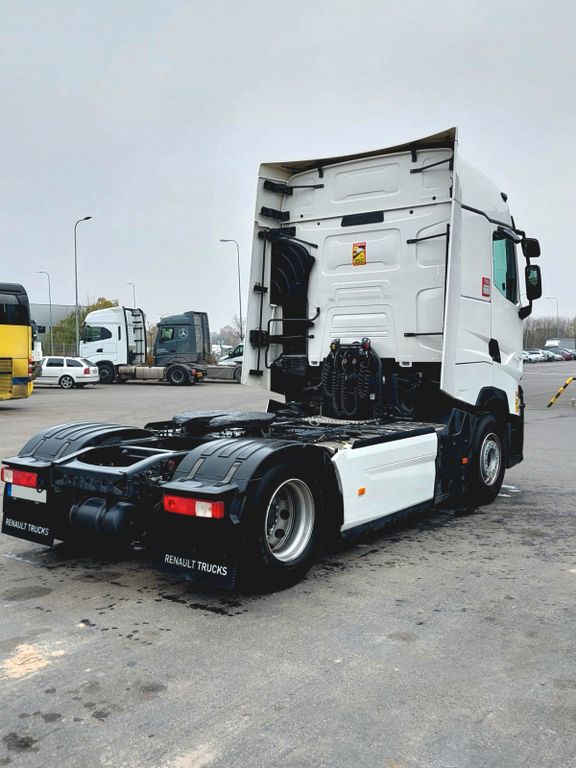

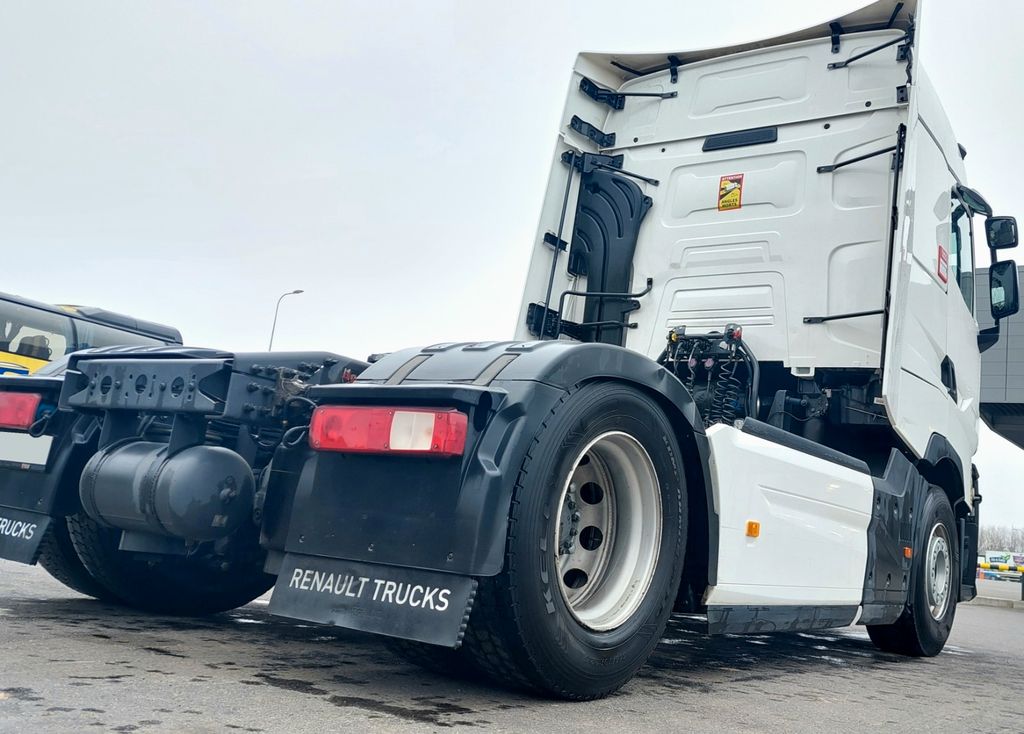

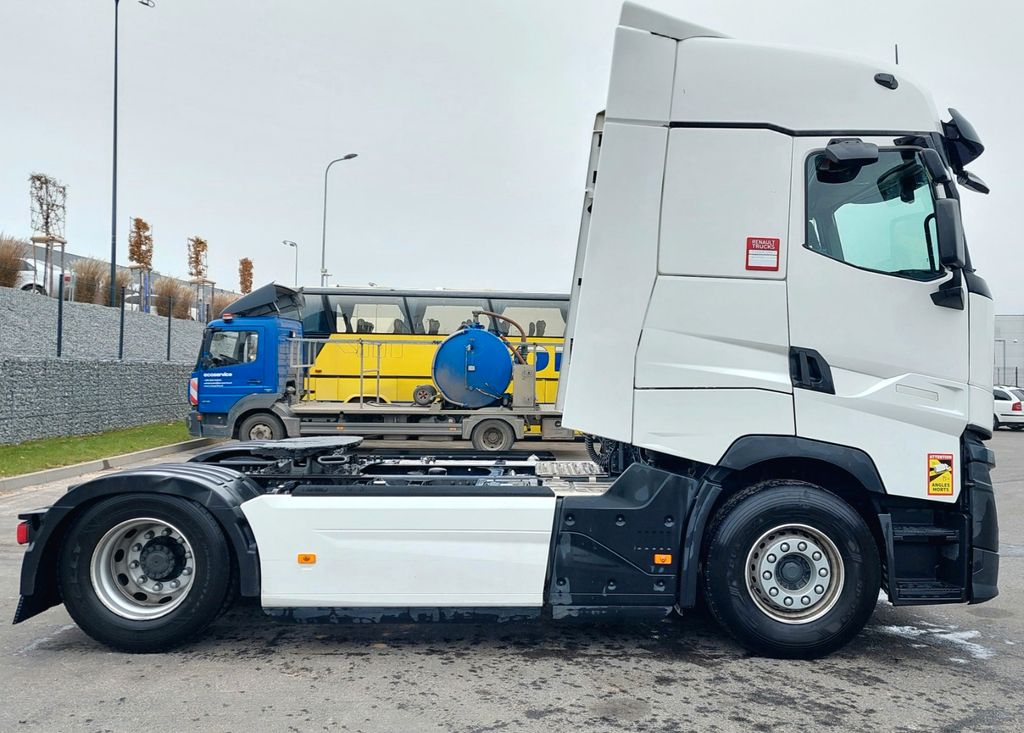

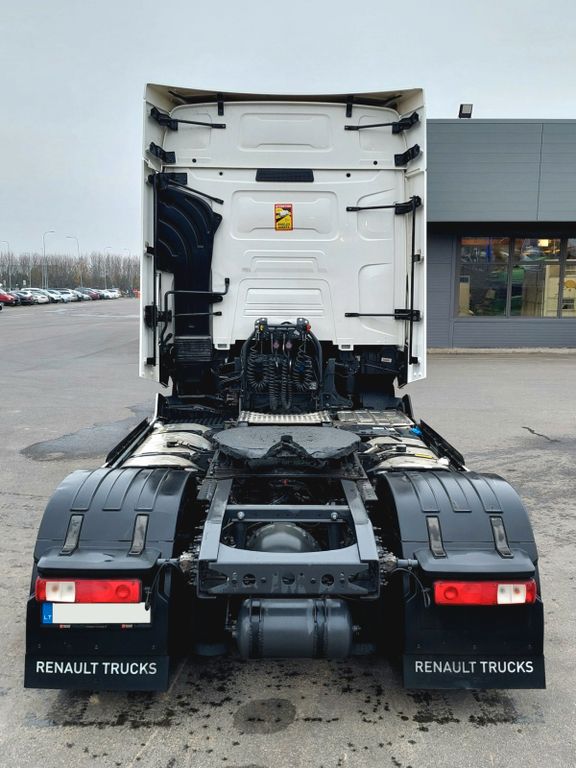

Renault T HIGH 480 T4X2 13L E6, 2022

DTI 13 ENGINE
Max. power: 353 kW from 1404 to 1800 rpm
Max. torque: 2400 Nm from 950 rpm to 1404 rpm
6-cylinder in-line diesel engine:
Common rail high-pressure fuel-injection (2000 bar)
24 valves — overhead camshaft, rear-mounted timing
High pressure provided by three pumps on injector bodies.
Bore 131 mm — stroke 158 mm — Capacity 12.8 L
Electronically-controlled fan
Turbocharger
Engine adapted to sulphur diesel
EEC EURO VI pollution control level
Compact after-treatment system (catalytic converter, DPF,SCR)
Cooling liquid. Automatic regeneration of particulate filter

ENGINE EQUIPMENT
Power mode inhibited after passing the ‘hard spot’ of the accelerator pedal
Partial gas recycling (semi-closed circuit)
Intake air preheating cold starting device
Electronic speed limiter (90 km/h).

GEARBOX
Optidriver AT 2612F gearbox (14.94 — 1)
Automatic clutch aluminium housing.
Max. torque 2550 Nm, 12 forwards and 3 reverse gears.
Steering wheel-mounted operating mode selection
(automatic/manual) via gear shift selector.
Optivision Map Based gear shift strategy for FUEL ECO
(anticipation of topography and centralised data storage).
Gearbox rear intermediate housing in aluminium
Gearbox oil cooler, oil/water heat exchanger

OPTIBRAKE + ENGINE BRAKE (power rating 382 kW at 2300 rpm):
combination of the exhaust brake
valve compression braking, coupled to service brake

CAB
Cab exterior:

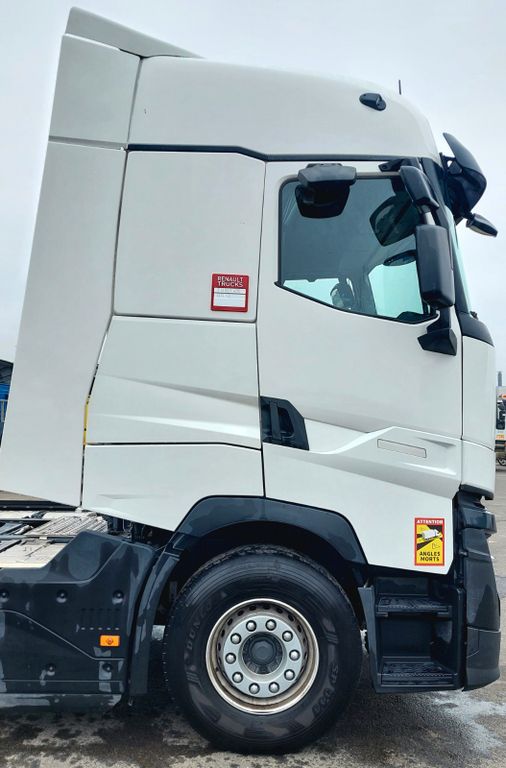

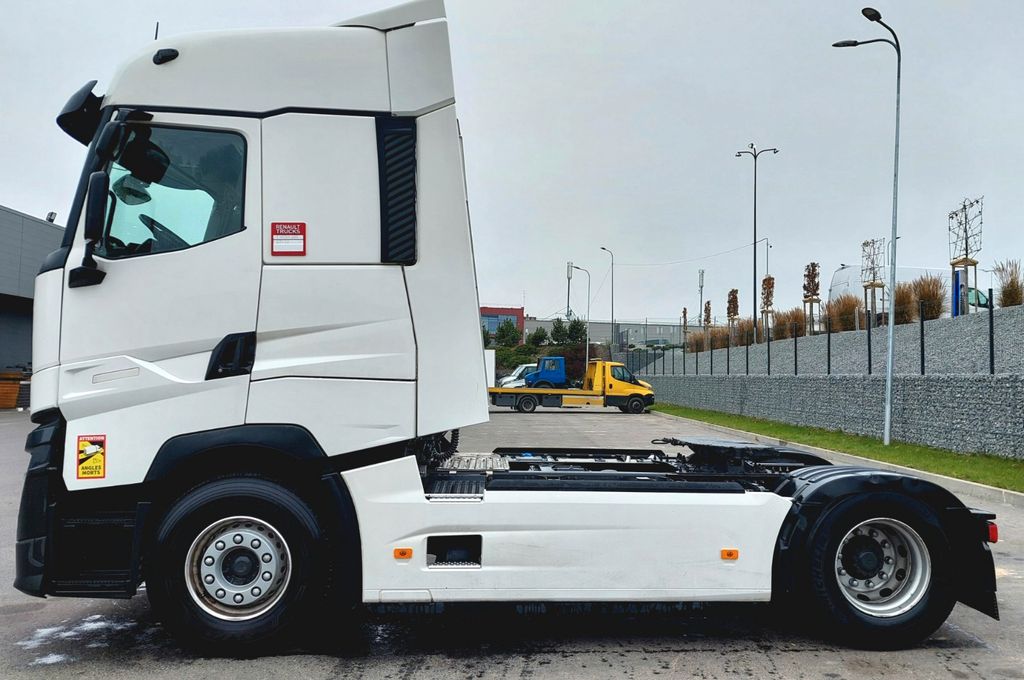

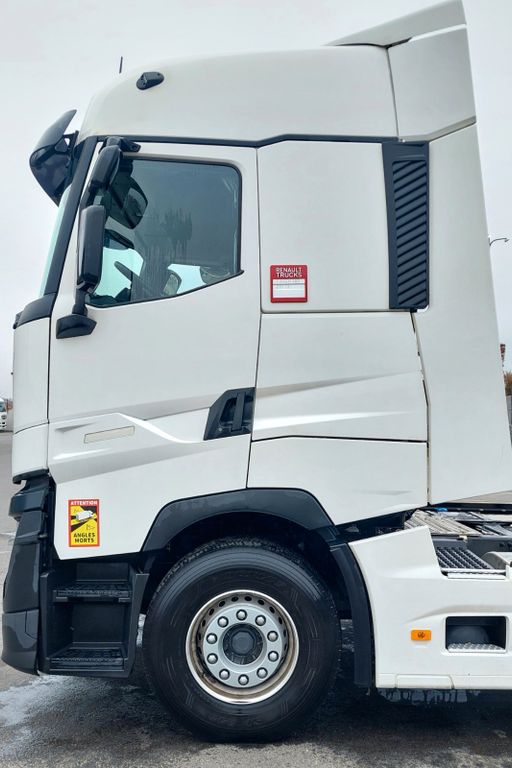

High Sleeper cab
All steel Cab, electro-zinc plated and cataphoretic paint
treatment.
Cab paint colour: White ekla
Technical code: 09350
Red badge. Aerodynamic dirt deflectors on the headlamps
4-point cab air suspension with ride-height control system
Four side storage compartments
2 heated, remote control rear view mirrors.
Air horn
Spray suppression on front wings
Fixed roof deflector
Side deflectors (left-hand opening panel)
Door extensions (step cover)
Exterior parts finished in cab colour
Wide external sun visor.
Tinted, laminated windscreen.
Instrument panel:
PANORAMIC dashboard 7" HD colour information display
12 V + 24 V socket on dashboard, for accessories.
Start button
Customer speed +5 km/h downhill
ECO Cruise control with Optiroll
Power mode inhibited after passing the ‘hard spot’ of the
accelerator pedal

Cab interior:
Cab interior finish — Anthracite
Performance roof console
DTCO 4.0 digital chronotachograph
Offset 24 V socket
40L refrigerator in central storage under bench, quiet with
thermostat and vehicle battery management

ELECTRONIC EQUIPMENT:
English and Lithuanian Russian language display
SAE cab socket for vehicle data extraction
Load per axle indicator
Toll Collect pre-equipment
FMS Gateway fleet management interface 3.0
Assistance button for geolocation via the 24/7 platform
Lane Departure Warning System (LDWS)
Advanced emergency braking system (AEBS)

CHASSIS
Chassis protective paintwork, mineral grey colour
technical code: 03650

FUEL TANK
Main and additional aluminium tanks.
Main fuel tank: 405 litres capacity D710 profile on right
Main fuel tank: 650 litres capacity D710 profile on left

AdBlue
100-litre AdBlue tank on the right
